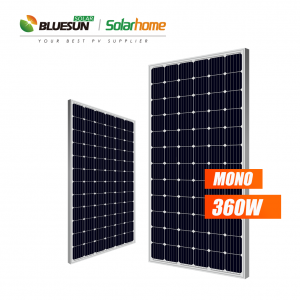

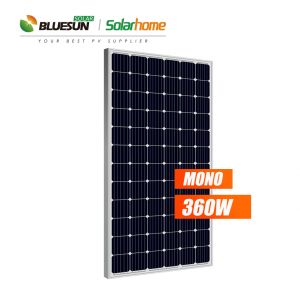

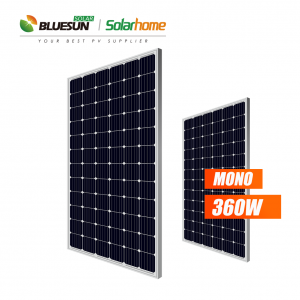

Mono Solar Panel 72 Cells Series 360w
-
Solar Cell :
5BB Mono 156mm -
Number Of Cells :
72 -
Power Range :
340w-380w -
Size :
1956*992*35/40mm -
Certificate :
TUV, CEC, CE, ISO -
Lead Time :
5 Days -
Payment :
T/T, L/C, Paypal, Western Union -
Warranty :
25 Years
Features & Benefits
Monocrystalline 360W 350W 340W solar panel 48V PV system solar module for solar power plant
Product Description
|
Moduel |
BSM340M-72 |
BSM345M-72 |
BSM350M-72 |
BSM355M-72 |
BSM360M-72 |
|
Rated Maximum Power at STC |
340 |
345 |
350 |
355 |
360 |
|
Open Circuit Voltage(Voc/V) |
46.91 |
47.13 |
47.29 |
47 |
47.2 |
|
Maximum Power Voltage(Vmp/V) |
38.17 |
38.39 |
38.59 |
38.7 |
38.9 |
|
Short Circuit Current(Isc/A) |
9.41 |
9.48 |
9.55 |
9.69 |
9.79 |
|
Maximum Power Current(Imp/A) |
8.91 |
8.99 |
9.07 |
9.17 |
9.26 |
|
Module Efficiency(%) |
17.54 |
17.8 |
18 |
18.3 |
18.5 |
|
Power Tolerance |
-0~+3% |
||||
|
Standard Test Condition(STC) |
Irradiance 1000W/m2,Cell Temperature 25℃,Air Mass1.5 |
||||
