Features & Benefits
M1589BPERCBP Mono-crystalline SE Bifacial Solar Cell
Product Appearance
|

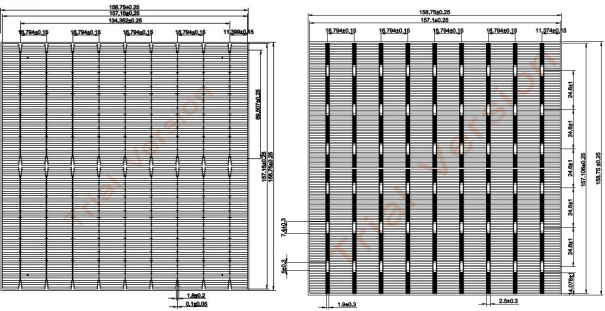

Mechanical data and Design |
||
|
Dimension |
158.75mm*158.75mm±0.25mm |
TkVoltage：-0.36 %/K |
|
Thickness |
190±30μm |
TkCurrent：+0.07%/K |
|
Front |
9 *0.1mm busbars(Silver), 114 finger grids, Blue anti-reflecting coating (silicon nitride) |
TkPower：-0.38%/K |
|
Back(+) |
Width of back electrode (Silver) 1.8mm, 9 busbars (aluminum), 150 finger grids(aluminum), Blue anti-reflecting coating (silicon nitride) |
Rsh≥30Ω，Irev2≤0.8A |
|
Light Intensity dependence |
||
|
Intensity(W/m2) |
Uoc |
Isc |
|
1000 |
1.000 |
1.000 |
|
900 |
0.996 |
0.903 |
|
800 |
0.991 |
0.803 |
|
600 |
0.988 |
0.602 |
|
400 |
0.962 |
0.403 |
|
Ratio of Voc (Isc) at reduced intensity to Voc (Isc) at 1000W/m. |
||
| IV CURVE | SOLDER ABILITY | |
 |
Peel Strength Minimum | >1.4N/mm |
| Result may be different due to different ribbons, soldering methods and paremeters. | ||
|
Electrical Parameter |
|||||||
|
Efficiency Code |
Efficie ncy |
Pmpp （W） |
Umpp （V） |
Impp （A） |
Uoc （V） |
Isc （A） |
FF （%） |
|
HZ-158.75M-226 |
（%） |
5.7 |
0.579 |
9.835 |
0.684 |
10.382 |
80.2 |
|
HZ-158.75M-225 |
22.50 |
5.67 |
0.577 |
9.815 |
0.683 |
10.373 |
79.92 |
|
HZ-158.75M-224 |
22.40 |
5.64 |
0.577 |
9.785 |
0.683 |
10.344 |
79.84 |
|
HZ-158.75M-223 |
22.30 |
5.62 |
0.576 |
9.763 |
0.683 |
10.342 |
79.57 |
|
HZ-158.75M-222 |
22.20 |
5.59 |
0.574 |
9.736 |
0.681 |
10.314 |
79.56 |
|
HZ-158.75M-221 |
22.10 |
5.57 |
0.573 |
9.725 |
0.68 |
10.307 |
79.43 |
|
HZ-158.75M-220 |
22.00 |
5.54 |
0.571 |
9.712 |
0.678 |
10.294 |
79.35 |
|
HZ-158.75M-219 |
21.90 |
5.52 |
0.569 |
9.708 |
0.677 |
10.281 |
79.29 |
|
HZ-158.75M-218 |
21.80 |
5.49 |
0.566 |
9.695 |
0.676 |
10.267 |
79.14 |
|
HZ-158.75M-217 |
21.70 |
5.47 |
0.565 |
9.69 |
0.674 |
10.259 |
79.06 |
|
HZ-158.75M-216 |
21.60 |
5.44 |
0.562 |
9.679 |
0.673 |
10.247 |
78.92 |
|
HZ-158.75M-215 |
21.50 |
5.42 |
0.56 |
9.672 |
0.671 |
10.236 |
78.84 |
|
HZ-158.75M-214 |
21.40 |
5.39 |
0.558 |
9.662 |
0.669 |
10.231 |
78.72 |
|
HZ-158.75M-213 |
21.30 |
5.37 |
0.557 |
9.649 |
0.667 |
10.226 |
78.67 |
|
HZ-158.75M-212 |
21.20 |
5.34 |
0.555 |
9.626 |
0.665 |
10.22 |
78.62 |
|
Standard Testing Conditions：1000W/m2，AM1.5，25℃ Specifications subjects to technical changes and tests Hertzpv® reserves the rights of final |
|||||||
|
Back Electrical Parameter |
||||||
|
Efficiency Code |
Range of Eff （%） |
Pmpp （W） |
Umpp （V） |
Impp （A） |
Uoc （V） |
Isc （A） |
|
HZ-158.75M-151 |
＞16.00% |
4.05 |
0.575 |
7.045 |
0.672 |
7.4 |
|
HZ-158.75M-150 |
15.50%-16.00% |
3.97 |
0.572 |
6.946 |
0.671 |
7.264 |
|
HZ-158.75M-149 |
15.00%-15.50% |
3.85 |
0.572 |
6.736 |
0.669 |
7.051 |
|
HZ-158.75M-148 |
＜15.00% |
3.76 |
0.571 |
6.583 |
0.669 |
6.883 |
|
Standard Testing Conditions：1000W/m2，AM1.5，25℃ Specifications subjects to technical changes and tests Hertzpv® reserves the rights of final interpretation. |
||||||
-
