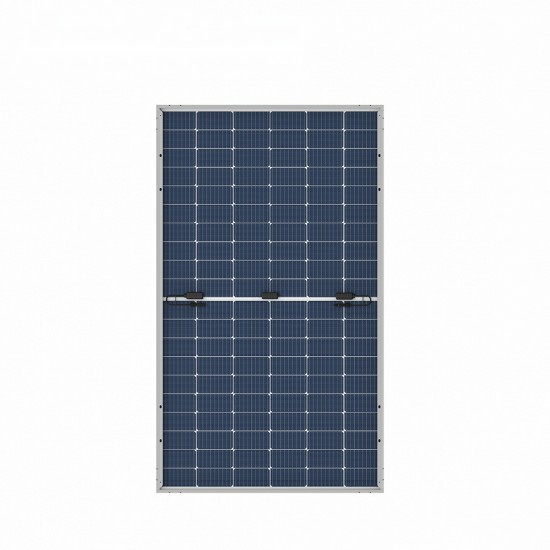

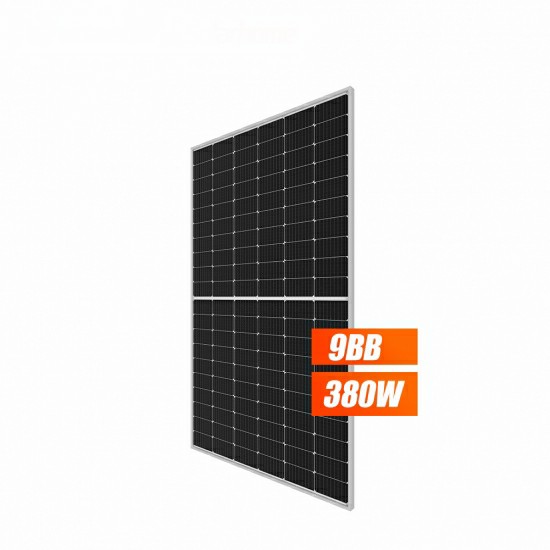

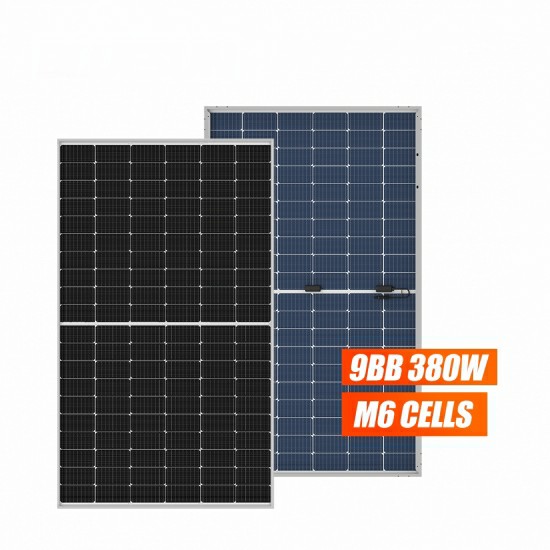

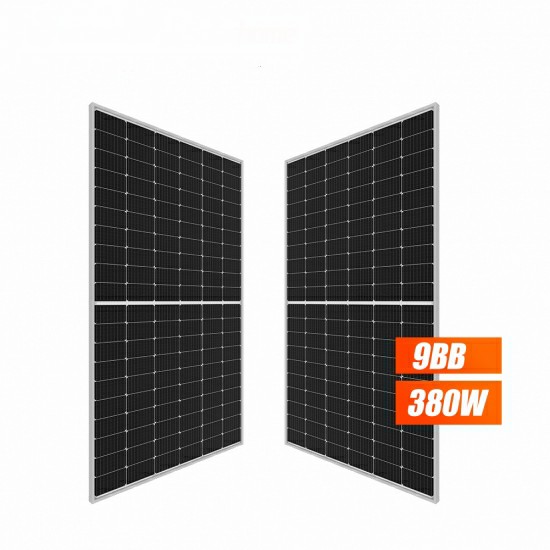

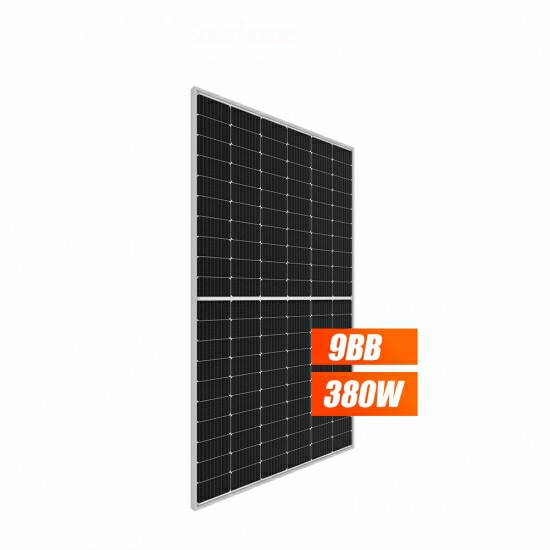

Hertzpv 166mm Bifacial Perc PV Module 380watt 380 Wp 380w Perc Half Cell Mono Solar Panel
-
Solar Cell :
Perc 166mm -
Number Of Cells :
120(6*20) -
Power Range :
350w-380w -
Size :
1776*1052*35mm -
Certificate :
TUV, ETL,CSA, CE -
Lead Time :
10 Days -
Payment :
T/T, L/C, Paypal, Western Union -
Warranty :
30 Years
Features & Benefits
120 cells bifacial perc 9BB half cell perc solar panel 350w/360w/370w/380w for on-grid &off-grid&hybrid residential&industrial use for PV Power System
|
Electrical Characteristics |
|||||||
|
Model Number |
HZ350M-60HBD |
HZ355M-60HBD |
HZ360M-60HBD |
HZ365M-60HBD |
HZ370M-60HBD |
HZ375M-60HBD |
HZ380M-60HBD |
|
Maximum Power (Pmax/W) |
350 |
355 |
360 |
365 |
370 |
375 |
380 |
|
Open Circuit Voltage (Voc/V) |
40.1 |
40.3 |
40.5 |
40.7 |
40.9 |
41.1 |
41.3 |
|
Short Circuit Current (Isc/A) |
11.15 |
11.24 |
11.33 |
11.41 |
11.5 |
11.58 |
11.67 |
|
Voltage at Maximum Power (Vmp/V) |
33.5 |
33.7 |
33.9 |
34.1 |
34.3 |
34.5 |
34.7 |
|
Current at Maximum Power (Imp/A) |
10.45 |
10.54 |
10.62 |
10.71 |
10.79 |
10.87 |
10.96 |
|
Module Efficiency(%) |
19.2 |
19.5 |
19.8 |
20 |
20.3 |
20.6 |
20.9 |
|
STC (Standard Testing Conditions): Irradiance 1000W/m², Cell Temperature 25 ℃, Spectra at AM1.5 |
|||||||
-
