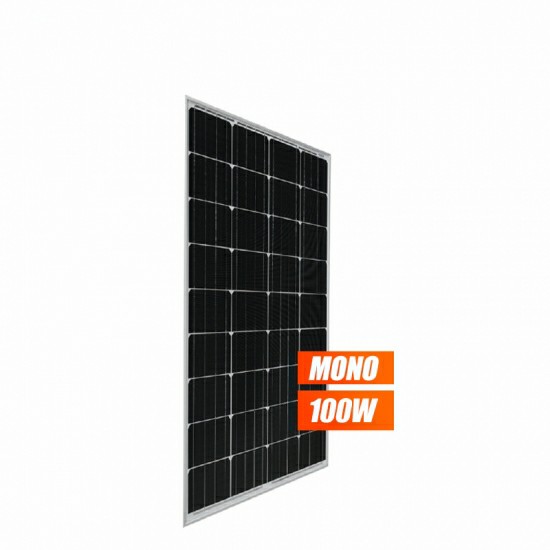

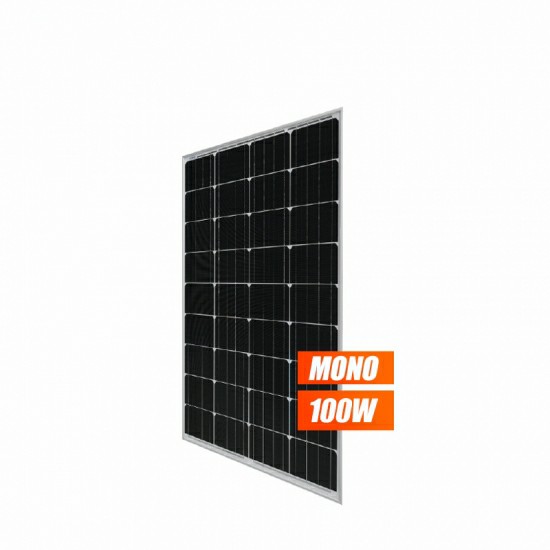

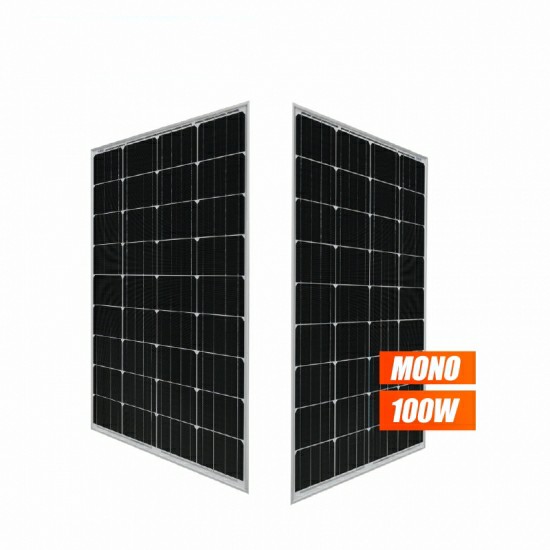

Hertzpv 100 Watts 12 Volts Monocrystalline Solar Panel 50W 100W 150W Solar Panel
-
Solar Cell :
Monocrystalline 47*156.75mm -
Number Of Cells :
36 -
Power Range :
100w -
Size :
1800*1130*795mm -
Certificate :
TUV, ETL, CEC, CE, ISO -
Lead Time :
5 Days -
Payment :
T/T, L/C, Paypal, Western Union -
Warranty :
25 Years
Features & Benefits
|

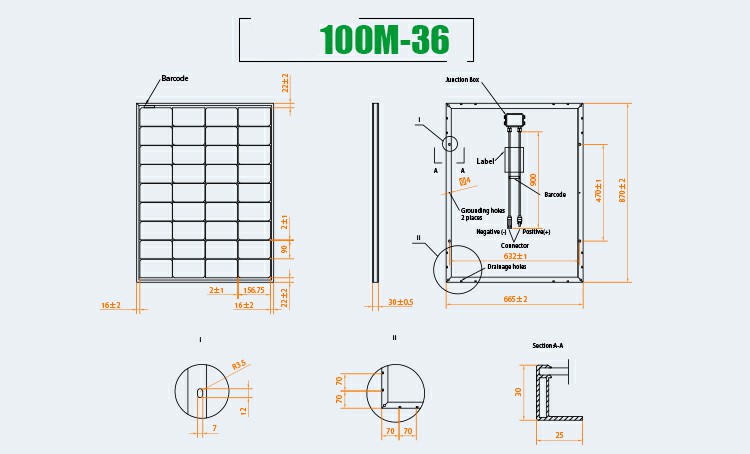

Mechanical Specifications |
|
|
Module |
100M-36 |
|
External Dimensions |
870*665*30mm |
|
Weight |
6.5kg |
|
Solar Cells |
mono crystalline 90*156.75mm (36pcs) |
|
Front Glass |
3.2 mm tempered glass low iron |
|
Frame |
Anodized aluminum alloy |
|
Junction Box |
IP67 |
|
Cables/Connector |
Optional |
|
Mechanical Load |
5400 Pa |
|
Packing Information |
|||
|
Module |
50M-36 |
100M-36 |
150M-36 |
|
Piled pallet size（20/40’GP） |
1390*1130*628mm 1565*1130*795mm |
1390*1130*998mm 1800*1130*795mm |
1310*1130*800mm |
|
Gross weight per pallet |
306 kg/434 kg |
466 kg |
310 kg |
|
Quantity per pallet |
64 pcs/96 pcs |
64 pcs |
30 pcs |
|
Quantity per 20 feet container |
1536 pcs |
1024 pcs |
480 pcs |
|
Quantity per 40 feet container |
4032pcs |
2304 pcs |
1530 pcs |
-
