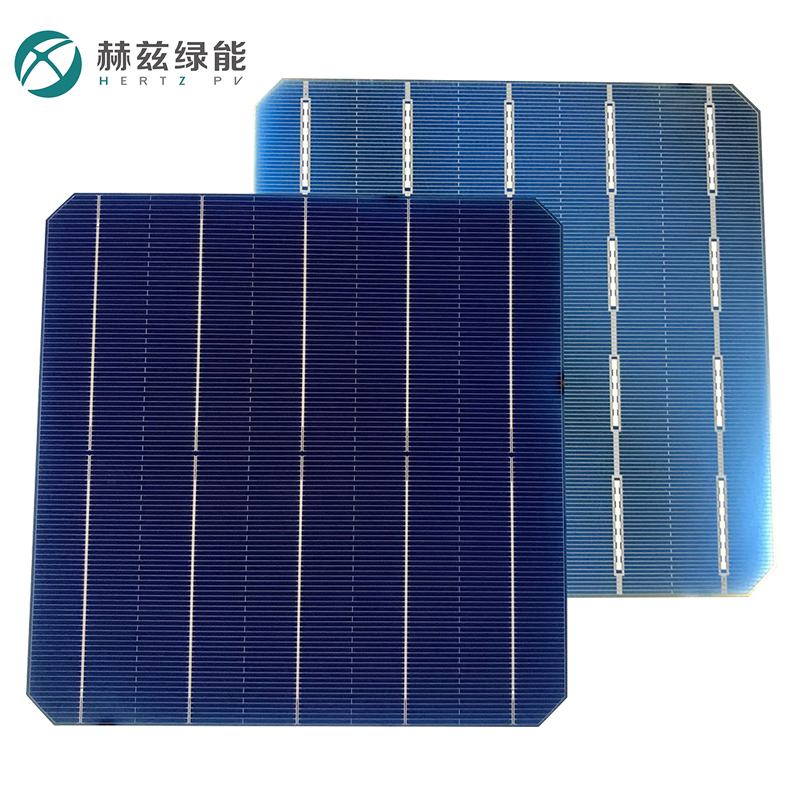

Product Appearance
Mechanical Data and Design
|
Dimension
|
156.75mm*156.75mm±0. 25mm
|
|
Thickness
|
190±3 0μm
|
|

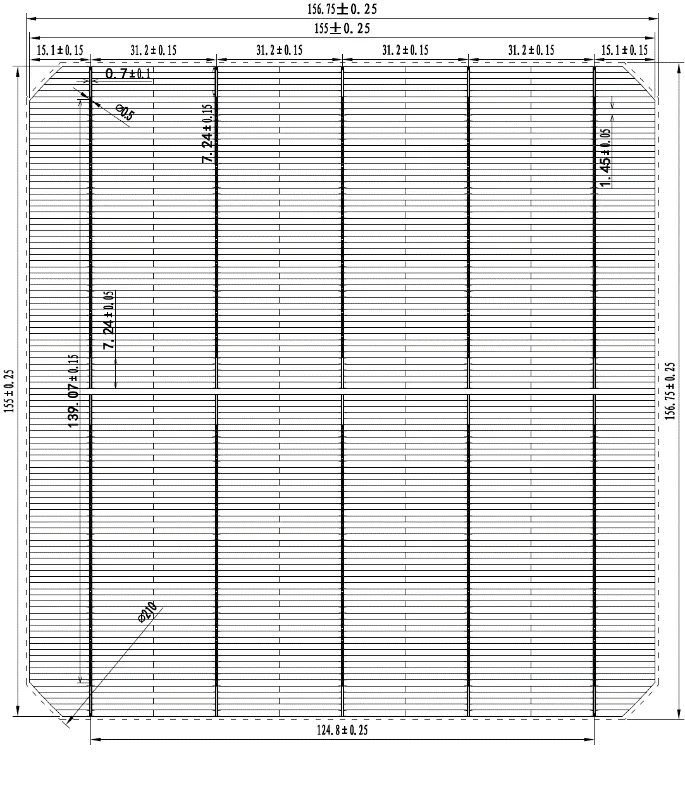

Front
|
5 bus bars (silver)，width 0.7mm，108 finger grids ， Blue anti-reflecting coating (silicon
nitride)
|
|

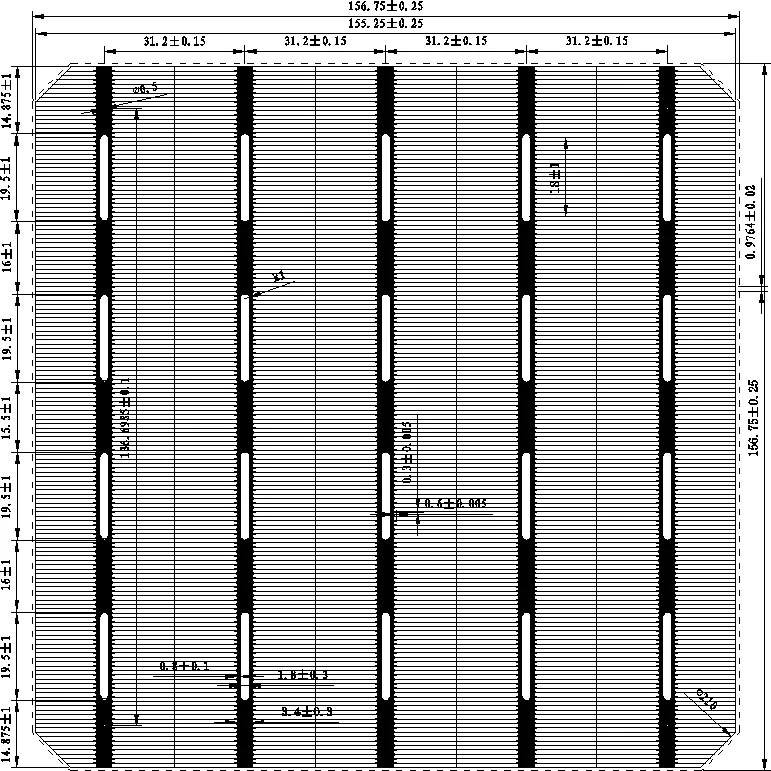

Back(+)
|
wide soldering pads (silver)1.8mm，5 bus bars (aluminum)，160 finger grids(aluminum)，
Blue anti-reflecting coating (silicon nitride)
|
|
Temperature Coefficients
|
|
TkUoc (%/K)
|
-0.36
|
|
TkIsc(%/K)
|
+0.06
|
|
TkPMAX(%/K)
|
-0.36
|
|
Light Intensity dependence
|
|
|
|
|
|
1000
|
1.0
|
1.0
|
|
900
|
0.99
|
0.9
|
|
800
|
0.99
|
0.8
|
|
600
|
0.98
|
0.6
|
|
400
|
0.96
|
0.4
|
|
Ratio of Voc(Isc) at reduced intensity to Voc(Isc) at 1000W/m2.
|

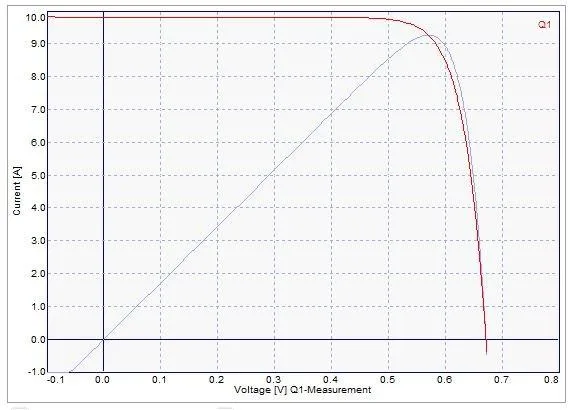

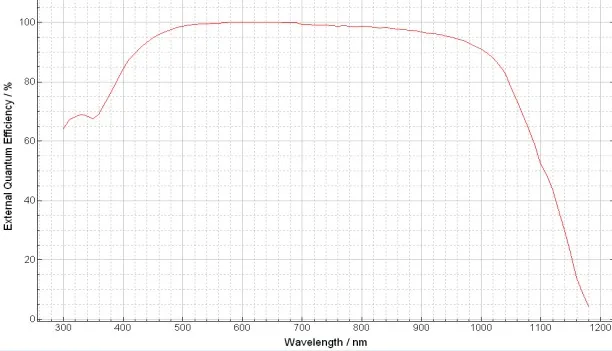

Front Efficiency Distribution
|
Efficiency Code
|
Efficiency(%)
|
Pmpp(W)
|
Umpp(V)
|
Impp (A)
|
Uoc(V)
|
Isc(A)
|
|
HZ-156.75M-220
|
22.0
|
5.38
|
0.578
|
9.432
|
0.679
|
9.847
|
|
HZ-156.75M-219
|
21.90
|
5.35
|
0.577
|
9.329
|
0.678
|
9.832
|
|
HZ-156.75M-218
|
21.80
|
5.33
|
0.576
|
9.316
|
0.677
|
9.818
|
|
HZ-156.75M-217
|
21.70
|
5.30
|
0.575
|
9.303
|
0.676
|
9.803
|
|
HZ-156.75M-216
|
21.60
|
5.28
|
0.574
|
9.291
|
|
9.788
|
|
HZ-156.75M-215
|
21.50
|
5.25
|
0.573
|
9.279
|
0.674
|
9.774
|
|
HZ-156.75M-214
|
21.40
|
5.23
|
0.571
|
9.269
|
0.673
|
9.759
|
|
HZ-156.75M-213
|
21.30
|
5.20
|
0.569
|
9.255
|
0.672
|
9.744
|
|
HZ-156.75M-212
|
21.20
|
5.18
|
0.567
|
9.244
|
0.671
|
9.730
|
|
HZ-156.75M-211
|
21.10
|
5.16
|
0.566
|
9.205
|
0.670
|
9.724
|
|
HZ-156.75M-210
|
21.00
|
5.13
|
0.565
|
9.180
|
0.669
|
9.709
|
|
HZ-156.75M-209
|
21.90
|
5.11
|
0.564
|
9.162
|
0.668
|
9.703
|
|
HZ-156.75M-208
|
20.80
|
5.08
|
0.562
|
9.140
|
0.667
|
9.681
|
|
HZ-156.75M-207
|
20.70
|
5.06
|
0.560
|
9.113
|
0.666
|
9.667
|
|
HZ-156.75M-206
|
20.60
|
5.03
|
0.558
|
9.089
|
0.665
|
9.652
|
|
STC (Standard Testing Conditions):1000W/m2, AM1.5, 25℃
Specifications subjects to technical changes and tests Tongwei Solar reserves the right of final interpretation.
|

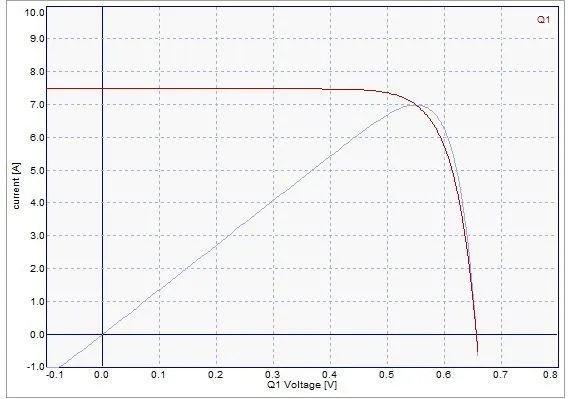

Back Efficiency Distribution
|
Efficiency Code
|
Efficiency(%)
|
Pmpp(W)
|
Umpp(V)
|
Impp (A)
|
Uoc(V)
|
Isc(A)
|
|
HZ-156.75M-151
|
＞16.00%
|
3.93
|
0.565
|
6.959
|
0.665
|
7.353
|
|
HZ-156.75M-150
|
15.50%-16.00%
|
3.86
|
0.564
|
6.833
|
0.664
|
7.219
|
|
HZ-156.75M-149
|
15.00%-15.50%
|
3.76
|
0.563
|
6.678
|
0.663
|
7.052
|
|
HZ-156.75M-148
|
＜15.00%
|
3.61
|
0.560
|
6.420
|
0.660
|
6.757
|
|
STC (Standard Testing Conditions):1000W/m2, AM1.5, 25℃
Specifications subjects to technical changes and tests Tongwei Solar reserves the right of final interpretation.
|
