Features & Benefits
SOLAR MONO-CRYSTALLINE M1669BPERCBP SE Solar Cell
Product Appearance
|

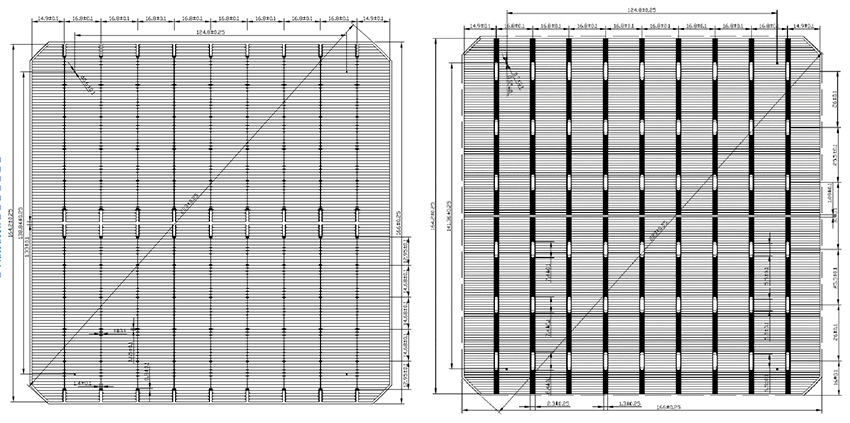

Technical Data and Design |
||
|
Dimension |
166mm*166mm±0.25mm |
TkVoltage：-0.36 %/K |
|
Thickness |
190±30μm |
TkCurrent：+0.07%/K |
|
Front |
9 busbars(silver), width 0.1±0.03mm, 124 finger grids, Blue anti-reflecting coating(silicon nitride) |
TkPower：-0.38%/K |
|
Back(+) |
width of back electrode(silver) 1.3±0.25mm, finger grids(aluminum), dotted laser design |
Rsh≥35Ω，Irev2≤0.8A |
|
Light Intensity dependence |
||
|
Intensity(W/m2) |
Uoc |
Isc |
|
1000 |
1.000 |
1.000 |
|
900 |
0.996 |
0.903 |
|
800 |
0.991 |
0.803 |
|
600 |
0.988 |
0.602 |
|
400 |
0.962 |
0.403 |
|
Take the Voc (Isc) at 1000W/m2 as the standard, test the range of Voc (Isc) decrease with light intensity. |
||

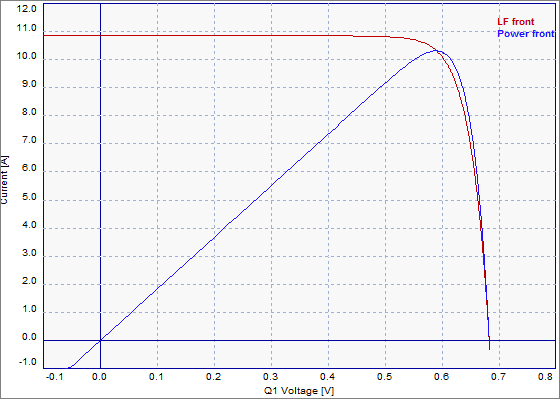

| IV CURVE | SOLDER ABILITY | |
 |
Peel strength Minimum | ≥1.4N/mm |
| Results may be different due to different ribbons, soldering methods and parameters. | ||
|
Electrical Performance Parameters |
|||||||
|
Efficiency |
Pmpp |
Umpp |
Impp |
Uoc |
Isc |
FF |
|
|
Code |
（%） |
（W） |
（V） |
（A） |
（V） |
（A） |
（%） |
|
HZ-166M-229 |
22.9 |
6.28 |
0.5933 |
10.582 |
0.6874 |
11.113 |
82.18 |
|
HZ-166M-228 |
22.8 |
6.25 |
0.5916 |
10.566 |
0.6859 |
11.100 |
82.10 |
|
HZ-166M-227 |
22.7 |
6.22 |
0.5905 |
10.540 |
0.6837 |
11.105 |
81.97 |
|
HZ-166M-226 |
22.6 |
6.20 |
0.5887 |
10.525 |
0.6822 |
11.090 |
81.89 |
|
HZ-166M-225 |
22.5 |
6.17 |
0.5873 |
10.503 |
0.6811 |
11.082 |
81.73 |
|
HZ-166M-224 |
22.4 |
6.14 |
0.5856 |
10.486 |
0.6807 |
11.075 |
81.46 |
|
HZ-166M-223 |
22.3 |
6.11 |
0.5835 |
10.477 |
0.6790 |
11.060 |
81.41 |
|
HZ-166M-222 |
22.2 |
6.09 |
0.5817 |
10.462 |
0.6780 |
11.046 |
81.26 |
|
HZ-166M-221 |
22.1 |
6.06 |
0.5799 |
10.448 |
0.6777 |
11.039 |
80.98 |
|
HZ-166M-220 |
22.0 |
6.03 |
0.5781 |
10.433 |
0.6774 |
11.021 |
80.81 |
|
HZ-166M-219 |
21.9 |
6.00 |
0.5760 |
10.424 |
0.6748 |
11.014 |
80.79 |
|
HZ-166M-218 |
21.8 |
5.98 |
0.5742 |
10.409 |
0.6743 |
10.996 |
80.60 |
|
HZ-166M-217 |
21.7 |
5.95 |
0.5720 |
10.401 |
0.6729 |
10.990 |
80.45 |
|
HZ-166M-216 |
21.6 |
5.92 |
0.5701 |
10.386 |
0.6719 |
10.974 |
80.30 |
|
HZ-166M-215 |
21.5 |
5.89 |
0.5684 |
10.371 |
0.6713 |
10.958 |
80.12 |
|
STC (Standard Testing Conditions)：1000W/m2，AM1.5，25℃ Technical parameters above-mentioned subjects to technical changes and tests. Hertzpv® reserves the right of final interpretation. |
|||||||
|
Back Electrical Performance Parameters |
||||||
|
|
Efficiency |
Pmpp |
Umpp |
Impp |
Uoc |
Isc |
|
Code |
（%） |
（W） （V） |
（A） |
（V） |
（A） |
|
|
HZ-166M-16.2 |
>16% |
4.44 |
0.5884 |
7.549 |
0.6788 |
8.019 |
|
HZ-166M-15.7 |
15.5%-16% |
4.30 |
0.5782 |
7.492 |
0.6688 |
7.940 |
|
HZ-166M-15.2 |
15%-15.5% |
4.17 |
0.5721 |
7.335 |
0.6650 |
7.735 |
|
HZ-166M-14.8 |
<15% |
4.06 |
0.5657 |
7.173 |
0.6592 |
7.554 |
|
STC (Standard Testing Conditions)：1000W/m2，AM1.5，25℃ Technical parameters above-mentioned subjects to technical changes and tests. Hertzpv®reserves the right of final interpretation. |
||||||
-
