Technical Data and Design

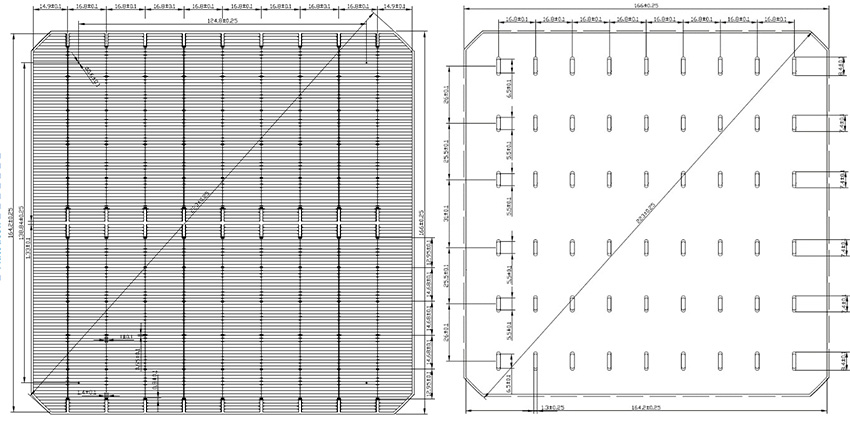

Dimension

166mm*166mm±0.25mm

TkVoltage：-0.36 %/K

Thickness

TkCurrent：+0.07%/K

Front

9 busbars(silver), width 0.1±0.03mm, 124 finger grids Blue anti-reflecting coating(silicon nitride)

TkPower：-0.38%/K

Back(+)

width of back electrode(silver) 1.3±0.25mm

Back surface field(aluminum), dotted laser design

Rsh≥35Ω，Irev2≤0.8A

Light Intensity dependence

Intensity(W/m2)

Uoc

Isc

1000

1.000

1.000

900

0.996

0.903

800

0.991

0.803

600

0.988

0.602

400

0.962

0.403

Take the Voc (Isc) at 1000W/m2 as the standard, test the range of Voc (Isc) decrease with light intensity.

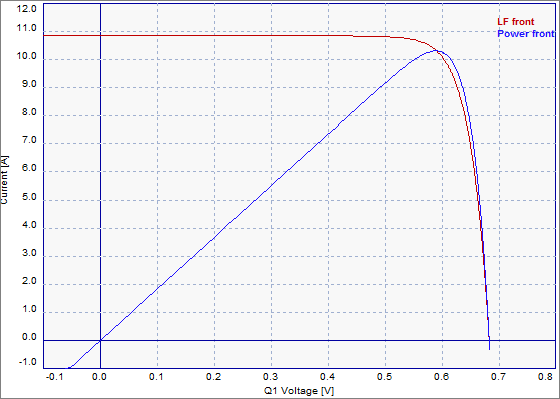

Electrical Performance Parameters

Efficiency

Pmpp

Umpp

 Impp

Uoc

Isc

FF

Code

（%）

（W）

（V）

（A）

（V）

（A） （%）

HZ-166M-229

22.9

6.28

0.5943

10.563

0.6817

11.139

82.67

HZ-166M-228

22.8

6.25

0.5925

10.550

0.6803

11.124

82.60

HZ-166M-227

22.7

6.22

0.5902

10.544

0.6784

11.119

82.51

HZ-166M-226

22.6

6.20

0.5885

10.529

0.6770

11.103

82.43

HZ-166M-225

22.5

6.17

0.5866

10.515

0.6761

11.089

82.27

HZ-166M-224

22.4

6.14

0.5848

10.502

0.6746

11.077

82.18

HZ-166M-223

22.3

6.11

0.5829

10.488

0.6732

11.060

82.11

HZ-166M-222

22.2

6.09

0.5805

10.485

0.6699

11.046

82.25

HZ-166M-221

22.1

6.06

0.5786

10.472

0.6683

11.033

82.18

HZ-166M-220

22.0

6.03

0.5764

10.464

0.6662

11.025

82.15

HZ-166M-219

21.9

6.00

0.5745

10.451

0.6641

11.008

82.13

HZ-166M-218

21.8

5.98

0.5726

10.437

0.6619

10.989

82.16

HZ-166M-217

21.7

5.95

0.5714

10.411

0.6610

10.964

82.08

HZ-166M-216

21.6

5.92

0.5709

10.373

0.6609

10.944

81.87

HZ-166M-215

21.5

5.89

0.5678

10.382

0.6601

10.940

81.62

STC (Standard Testing Conditions)：1000W/m2，AM1.5，25℃

Technical parameters above-mentioned subjects to technical changes and tests.  Hertzpv® reserves the right of final interpretation.
