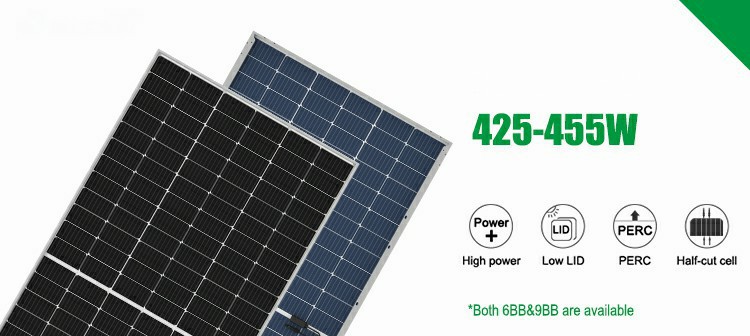

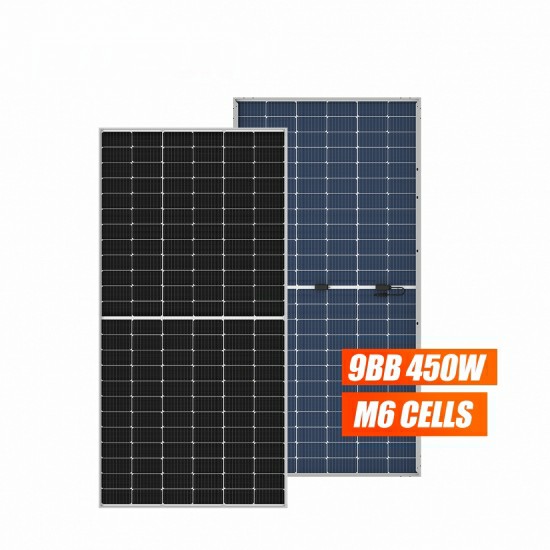

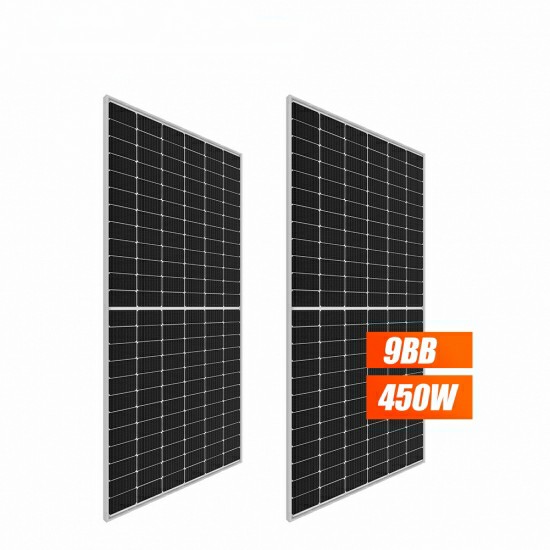

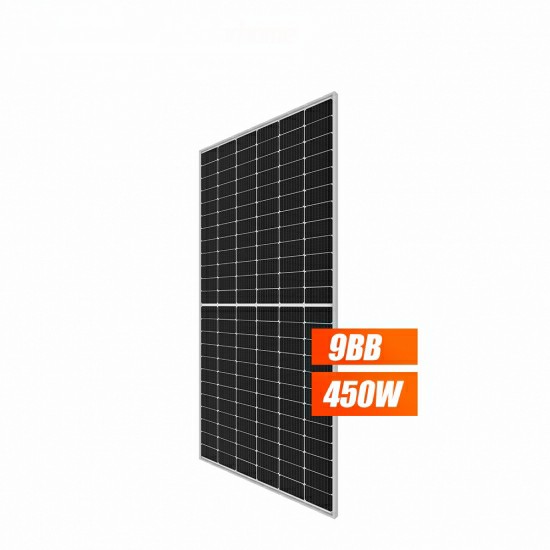

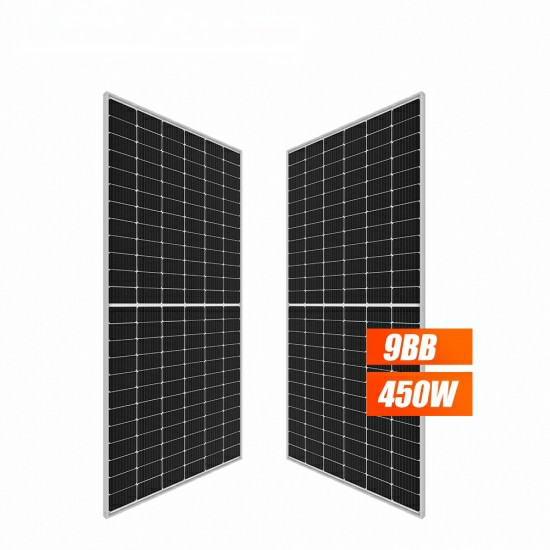

Hertzpv Solar Bifacial Perc 450 W Solar Panel Double Glass Solar Panels Half Cell 450Watt 450 Wp
-
Solar Cell :
Perc Bifacial 166mm -
Number Of Cells :
144cells (6*24) -
Power Range :
425w-455w -
Size :
2094*1038*35mm -
Certificate :
TUV, ETL,CSA, CE -
Lead Time :
10 Days -
Payment :
T/T, L/C, Paypal, Western Union -
Warranty :
25 Years
Features & Benefits
Half Cell Mono 450W Solar Panel Mono Perc Bifacial 425W 430W 435W 440W 445W 450W 455W PV Module For Residential&Commercial Solar Power System.
|
Electrical Characteristics |
|||||||
|
Model Number |
HZ425M-72HPH |
HZ430M-72HPH |
HZ435M-72HPH |
HZ440M-72HPH |
HZ445M-72HPH |
HZ450M-72HPH |
HZ455M-72HPH |
|
Testing Condition |
STC |
||||||
|
Maximum Power (Pmax/W) |
425 |
430 |
435 |
440 |
445 |
450 |
455 |
|
Open Circuit Voltage (Voc/V) |
48.3 |
48.5 |
48.7 |
48.9 |
49.1 |
49.3 |
49.5 |
|
Short Circuit Current (Isc/A) |
11.23 |
11.31 |
11.39 |
11.46 |
11.53 |
11.60 |
11.66 |
|
Voltage at Maximum Power (Vmp/V) |
40.5 |
40.7 |
40.9 |
41.1 |
41.3 |
41.5 |
41.7 |
|
Current at Maximum Power (Imp/A) |
10.50 |
10.57 |
10.64 |
10.71 |
10.78 |
10.85 |
10.92 |
|
Module Efficiency(%) |
19.6 |
19.8 |
20 |
20.2 |
20.5 |
20.7 |
20.9 |
|
STC (Standard Testing Conditions): Irradiance 1000W/m², Cell Temperature 25 ℃, Spectra at AM1.5 |
|||||||
-
