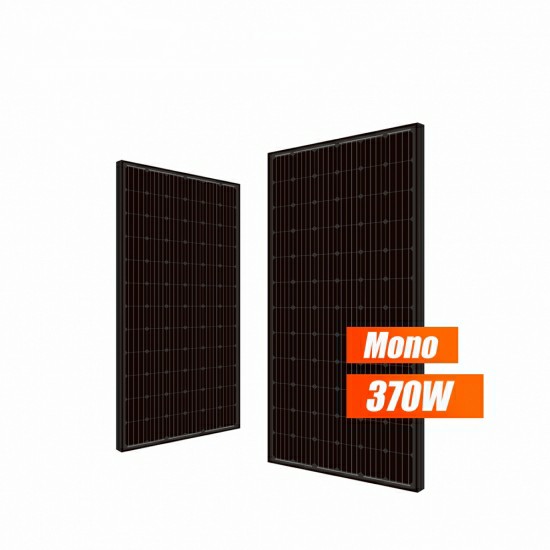

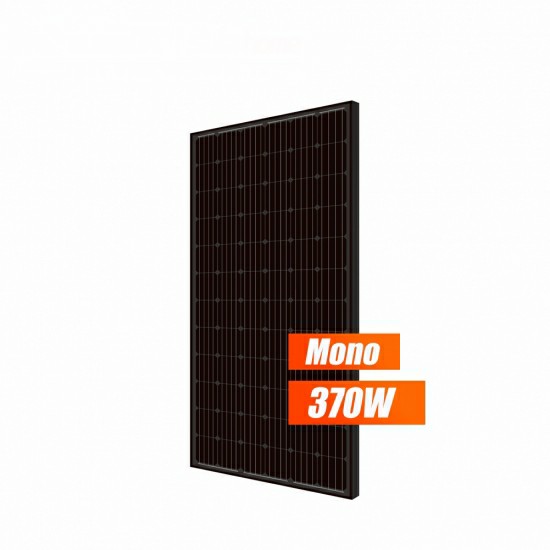

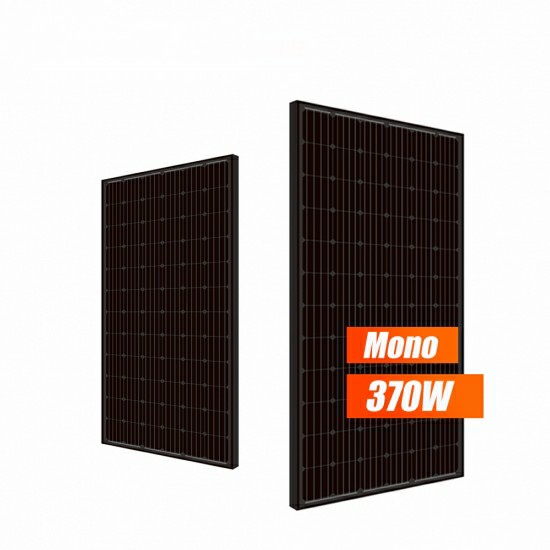

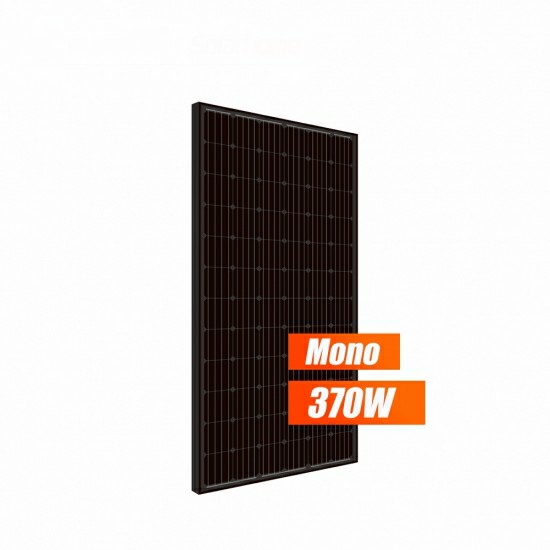

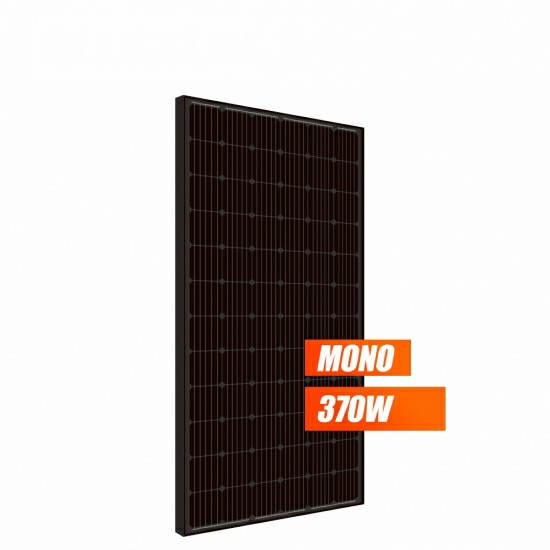

Hertzpv Panel Solar Monocrystalline Full Black Frame 370Watt 370Wp 370 W PV Module
-
Solar Cell :
5BB Mono 156mm -
Number Of Cells :
72 -
Power Range :
380w-400w -
Size :
1956*992*35/40mm -
Certificate :
TUV, CSA, CE, ISO -
Lead Time :
10 Days -
Payment :
T/T, L/C, Paypal, Western Union -
Warranty :
25 Years
Features & Benefits
Monocrystalline 36V 5BB mono 380W 385W 390w 395watt 400watt all black solar panel Bluesun 370 W 380 W 390 W 400 W black backsheet and black frames solar module for residential or commercial solar power system
|
Model |
HZ370M-72B |
HZ380M-72B |
HZ390M-72B |
HZ400M-72B |
|
Rated Maximum Power at STC |
370 |
380 |
390 |
400 |
|
Open CircuitVoltage(Voc/V) |
48.23 |
48.67 |
49.11 |
49.55 |
|
Maximum Power Voltage(Vmp/V) |
39.51 |
39.95 |
40.39 |
40.78 |
|
Short Circuit Current(Isc/A) |
10.03 |
10.22 |
10.41 |
10.59 |
|
Maximum Power Current(Imp/A) |
9.37 |
9.52 |
9.67 |
9.82 |
|
Module Efficiency(%) |
19.06 |
19.58 |
20.09 |
20.61 |
|
Power Tolerance |
-0~+5W |
|||
|
Standard Test Condition(STC) |
Irradiance 1000W/m2,Cell Temperature 25℃,Air Mass1.5 |
|||
