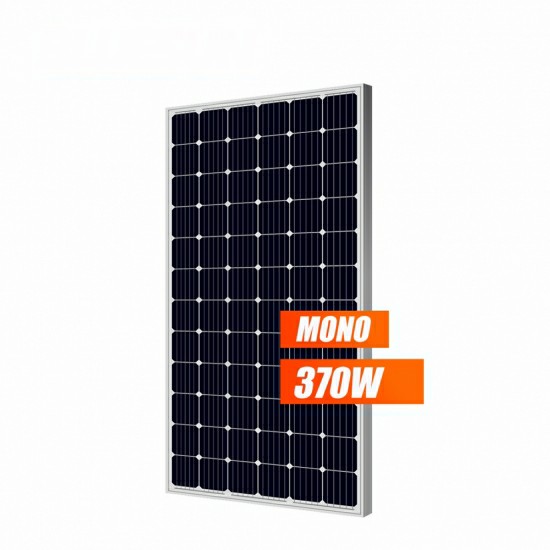

Hertzpv Mono Solar Panel 72 Cells Series 370w
-
Solar Cell :
5BB Mono 156mm -
Number Of Cells :
72 -
Power Range :
360w-380w -
Size :
1956*992*35/40mm -
Certificate :
TUV, CEC, CE, ISO -
Lead Time :
5 Days -
Payment :
T/T, L/C, Paypal, Western Union -
Warranty :
25 Years
Features & Benefits

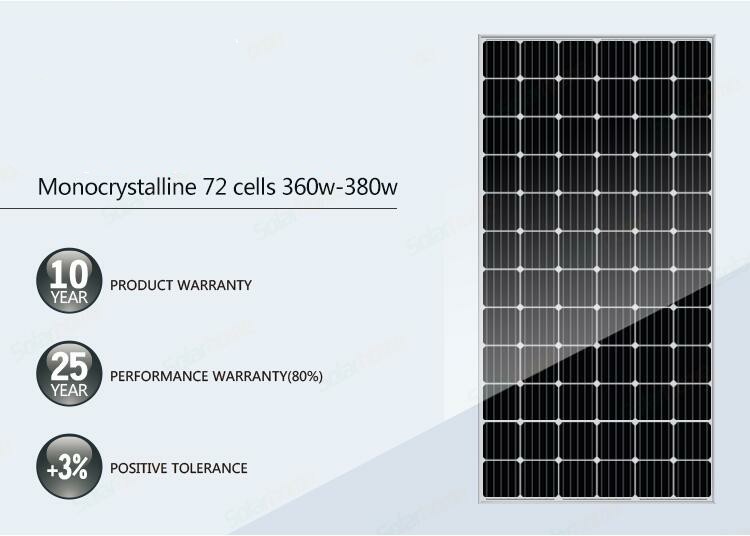

Monocrystalline 360W 370W 380W solar panel 48V PV system solar module for solar power plant
|
Model |
HZ360M-72 |
HZ365M-72 |
HZ370M-72 |
HZ375M-72 |
HZ375M-72 |
|
Rated Maximum Power at STC |
360W |
365W |
370W |
375W |
380W |
|
Open CircuitVoltage(Voc/V) |
47.44 |
47.67 |
47.81 |
47.93 |
48.06 |
|
Maximum Power Voltage(Vmp/V) |
39.01 |
39.38 |
39.40 |
39.45 |
39.55 |
|
Short Circuit Current(Isc/A) |
9.77 |
9.84 |
9.89 |
9.95 |
10.11 |
|
Maximum Power Current(Imp/A) |
9.23 |
9.27 |
9.41 |
9.51 |
9.61 |
|
Module Efficiency(%) |
18.6 |
18.8 |
19.1 |
19.3 |
19.6 |
|
Power Tolerance |
-0~+5W |
|
|||
|
Standard Test Condition(STC) |
Irradiance 1000W/m2,Cell Temperature 25℃,Air Mass1.5 |
||||
-
