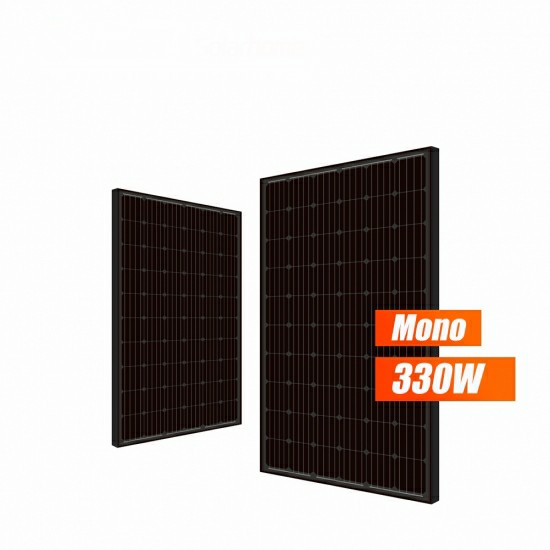

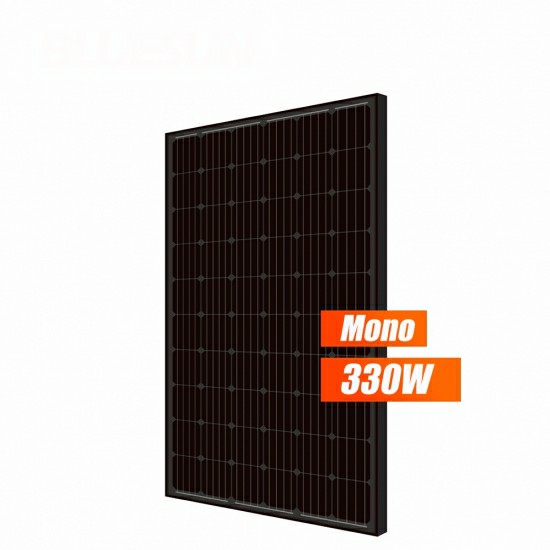

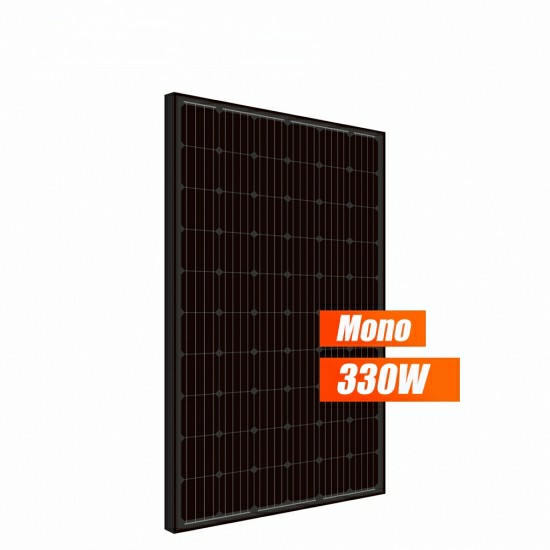

Hertzpv 5bb 330w Black Mono Solar Pane 330watt 330w Solar Monocrystalline Panels
-
Solar Cell :
5BB Mono 156mm -
Number Of Cells :
60 -
Power Range :
300w-330w -
Size :
1640*992*35/40mm -
Certificate :
TUV, CSA, CE, ISO -
Lead Time :
10 Days -
Payment :
T/T, L/C, Paypal, Western Union -
Warranty :
25 Years
Features & Benefits

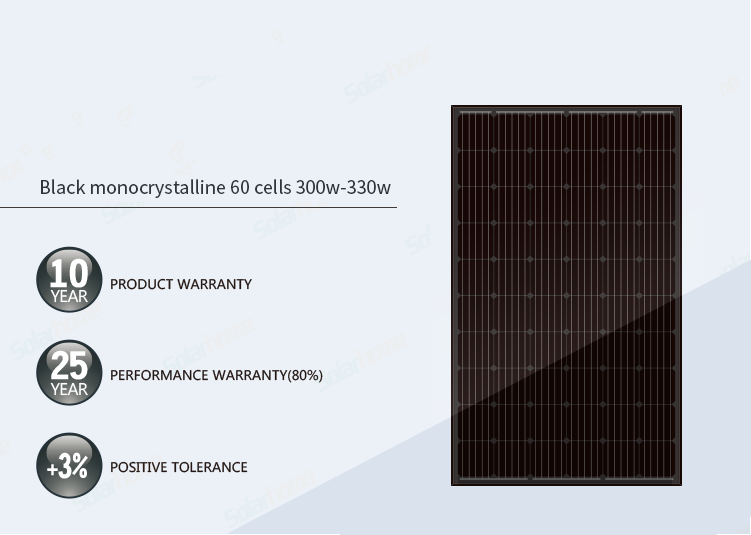

Monocrystalline 5BB mono 300W 330W all black solar panel Bluesun 320W 310 W full black solar module for residential or commercial solar power system
|
Model |
HZ300M-60 |
HZ310M-60 |
HZ320M-60 |
HZ330M-60 |
|
Rated Maximum Power at STC |
300 |
310 |
320 |
330 |
|
Open CircuitVoltage(Voc/V) |
39.82 |
40.18 |
40.9 |
41.3 |
|
Maximum Power Voltage(Vmp/V) |
32.541 |
32.95 |
33.4 |
33.8 |
|
Short Circuit Current(Isc/A) |
9.84 |
10.08 |
10.15 |
10.34 |
|
Maximum Power Current(Imp/A) |
9.23 |
9.41 |
9.59 |
9.77 |
|
Module Efficiency(%) |
18.44 |
19.05 |
19.66 |
20.28 |
|
Power Tolerance |
-0~+5W |
|||
|
Standard Test Condition(STC) |
Irradiance 1000W/m2,Cell Temperature 25℃,Air Mass1.5 |
|||
-
