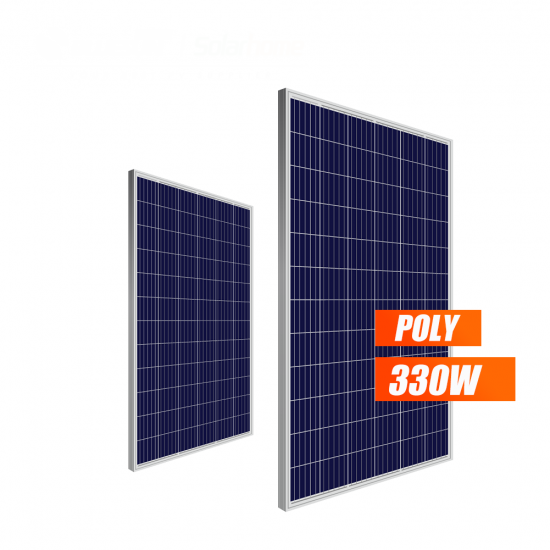

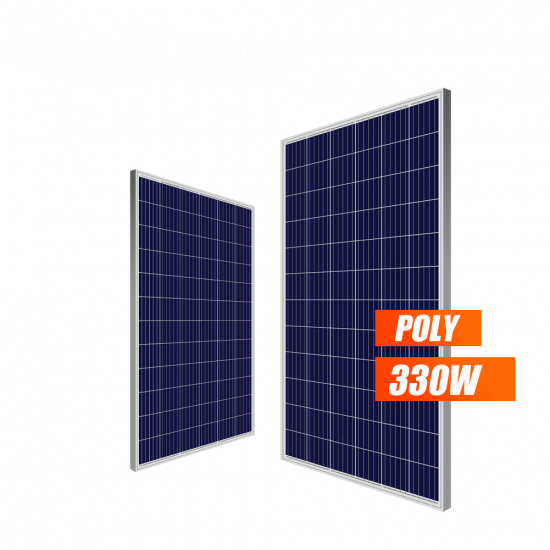

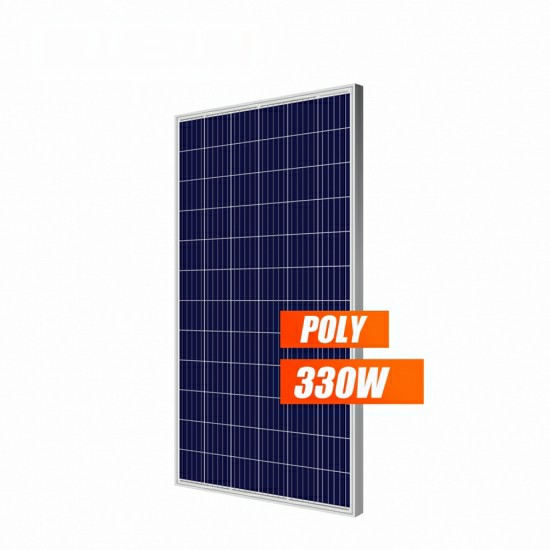

Hertzpv Poly Solar Panel 72 Cells Series 330w
-
Solar Cell :
5BB Poly 156mm -
Number Of Cells :
72 -
Power Range :
325W-350W -
Size :
1956*992*35/40mm -
Certificate :
TUV, CSA, CE, ISO -
Lead Time :
5 Days -
Payment :
T/T, L/C, Paypal, Western Union -
Warranty :
25 Years
Features & Benefits

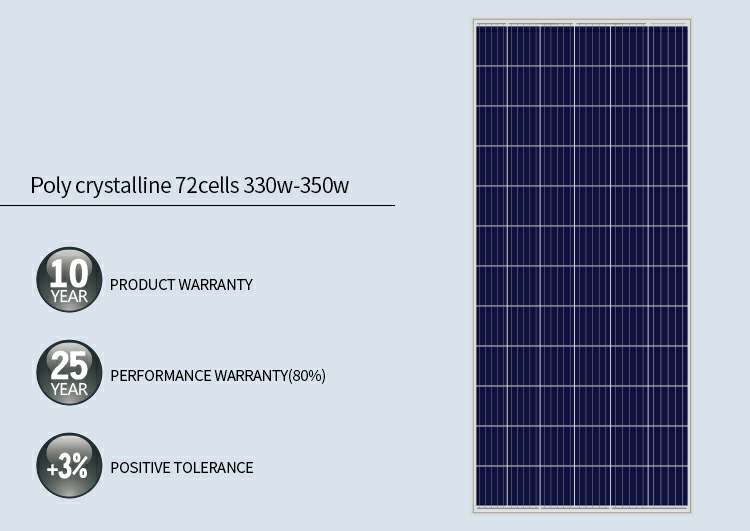

5BB poly solar panel 330w 340w 350w 72 cells series for solar power off grid / on grid system use
|
Model |
HZ330M-72 |
HZ335M-72 |
HZ340M-72 |
HZ345M-72 |
HZ345M-72 |
|
Rated Maximum Power at STC |
330 |
335 |
340 |
345 |
350 |
|
Open CircuitVoltage(Voc/V) |
46.10 |
46.30 |
46.50 |
46.70 |
46.90 |
|
Maximum Power Voltage(Vmp/V) |
37.60 |
37.90 |
38.20 |
38.40 |
38.50 |
|
Short Circuit Current(Isc/A) |
9.28 |
9.36 |
9.45 |
9.50 |
9.60 |
|
Maximum Power Current(Imp/A) |
8.78 |
8.84 |
8.90 |
9.00 |
9.09 |
|
Module Efficiency(%) |
17.00 |
17.30 |
17.50 |
17.80 |
18.00 |
|
Power Tolerance |
-0~+3% |
|
|||
|
Standard Test Condition(STC) |
Irradiance 1000W/m2,Cell Temperature 25℃,Air Mass1.5 |
||||
