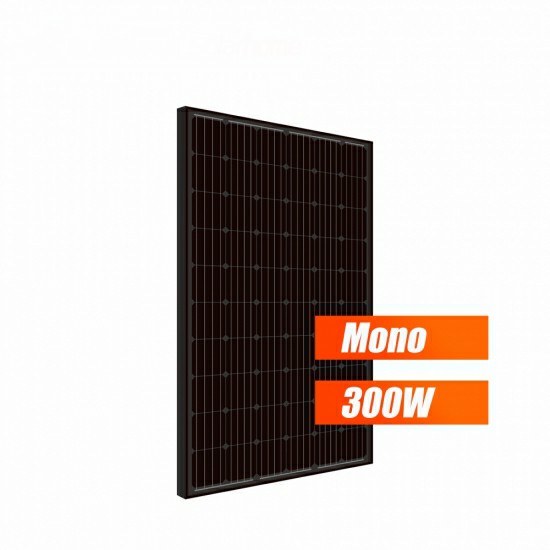

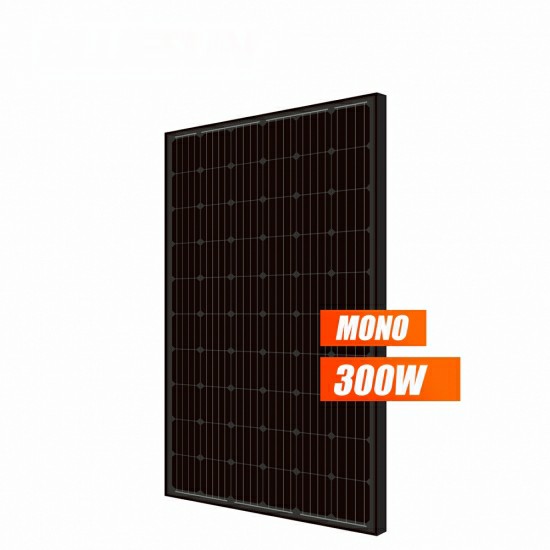

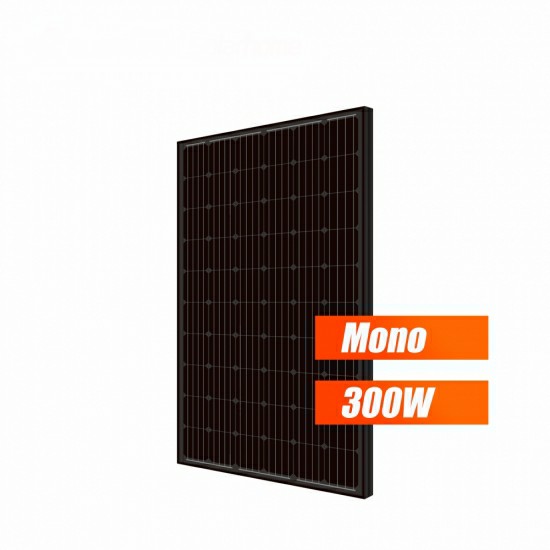

Hertzpv Black Mono Solar Panel 60 Cells Series
-
Solar Cell :
5BB Mono 156mm -
Number Of Cells :
60 -
Power Range :
280w-300w -
Size :
1640*992*35/40mm -
Certificate :
TUV, CSA, CE, ISO -
Lead Time :
10 Days -
Payment :
T/T, L/C, Paypal, Western Union -
Warranty :
25 Years
Features & Benefits
Monocrystalline 30V 5BB mono 300W 280W all black solar panel Bluesun 290 W 295 W full black solar module for residential or commercial solar power system
|
Model |
HZ280M-60 |
HZ285M-60 |
HZ290M-60 |
HZ300M-60 |
HZ300M-60 |
|
|
Rated Maximum Power at STC |
280 |
285 |
290 |
295 |
300 |
|
|
Open CircuitVoltage(Voc/V) |
39.05 |
39.25 |
39.46 |
39.64 |
39.8 |
|
|
Maximum Power Voltage(Vmp/V) |
31.68 |
31.85 |
32.07 |
32.29 |
32.6 |
|
|
Short Circuit Current(Isc/A) |
9.36 |
9.45 |
9.56 |
9.67 |
9.77 |
|
|
Maximum Power Current(Imp/A) |
8.84 |
8.97 |
9.11 |
9.23 |
9.23 |
|
|
Module Efficiency(%) |
17.12 |
17.43 |
17.74 |
18.04 |
18.3 |
|
|
Power Tolerance |
-0~+5W |
|
||||
|
Standard Test Condition(STC) |
Irradiance 1000W/m2,Cell Temperature 25℃,Air Mass1.5 |
|
||||
